SDL offers cross-platform thread management functions. More...

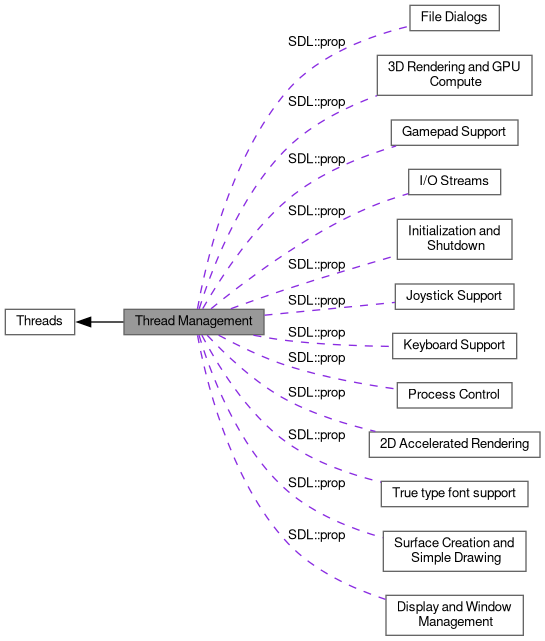

Collaboration diagram for Thread Management:

Classes
struct	SDL::ThreadParam
	Safely wrap Thread for non owning parameters. More...

class	SDL::Thread
	The SDL thread object. More...

struct	SDL::ThreadRef
	Semi-safe reference for Thread. More...

Typedefs
using	SDL::ThreadRaw = SDL_Thread *
	Alias to raw representation for Thread.

using	SDL::ThreadPriority = SDL_ThreadPriority
	The SDL thread priority. More...

using	SDL::ThreadState = SDL_ThreadState
	The SDL thread state. More...

using	SDL::ThreadID = SDL_ThreadID
	A unique numeric ID that identifies a thread. More...

using	SDL::ThreadFunction = SDL_ThreadFunction
	The function passed to Thread.Thread() as the new thread's entry point. More...

using	SDL::ThreadCB = std::function< int()>
	The function passed to Thread.Thread() as the new thread's entry point. More...

using	SDL::TLSDestructorCallback = SDL_TLSDestructorCallback
	The callback used to cleanup data passed to SetTLS. More...

using	SDL::TLSID = AtomicInt
	Thread local storage ID. More...

Functions
Thread	SDL::CreateThread (ThreadFunction fn, StringParam name, void *data)
	Create a new thread with a default stack size. More...

Thread	SDL::CreateThreadWithProperties (PropertiesParam props)
	Create a new thread with with the specified properties. More...

const char *	SDL::GetThreadName (ThreadParam thread)
	Get the thread name as it was specified in Thread.Thread(). More...

ThreadID	SDL::GetCurrentThreadID ()
	Get the thread identifier for the current thread. More...

ThreadID	SDL::GetThreadID (ThreadParam thread)
	Get the thread identifier for the specified thread. More...

void	SDL::SetCurrentThreadPriority (ThreadPriority priority)
	Set the priority for the current thread. More...

void	SDL::WaitThread (ThreadParam thread, int *status)
	Wait for a thread to finish. More...

ThreadState	SDL::GetThreadState (ThreadParam thread)
	Get the current state of a thread. More...

void	SDL::DetachThread (ThreadRaw thread)
	Let a thread clean up on exit without intervention. More...

void *	SDL::GetTLS (TLSID *id)
	Get the current thread's value associated with a thread local storage ID. More...

void	SDL::SetTLS (TLSID id, const void value, TLSDestructorCallback destructor)
	Set the current thread's value associated with a thread local storage ID. More...

void	SDL::CleanupTLS ()
	Cleanup all TLS data for this thread. More...

const char *	SDL::Thread::GetName () const
	Get the thread name as it was specified in Thread.Thread(). More...

ThreadID	SDL::Thread::GetID () const
	Get the thread identifier for the specified thread. More...

static void	SDL::Thread::SetCurrentPriority (ThreadPriority priority)
	Set the priority for the current thread. More...

void	SDL::Thread::Wait (int *status)
	Wait for a thread to finish. More...

ThreadState	SDL::Thread::GetState () const
	Get the current state of a thread. More...

void	SDL::Thread::Detach ()
	Let a thread clean up on exit without intervention. More...

Variables
constexpr ThreadPriority	SDL::THREAD_PRIORITY_LOW = SDL_THREAD_PRIORITY_LOW
	LOW.

constexpr ThreadPriority	SDL::THREAD_PRIORITY_NORMAL
	NORMAL. More...

constexpr ThreadPriority	SDL::THREAD_PRIORITY_HIGH
	HIGH. More...

constexpr ThreadPriority	SDL::THREAD_PRIORITY_TIME_CRITICAL
	TIME_CRITICAL. More...

constexpr ThreadState	SDL::THREAD_UNKNOWN
	The thread is not valid. More...

constexpr ThreadState	SDL::THREAD_ALIVE
	The thread is currently running. More...

constexpr ThreadState	SDL::THREAD_DETACHED
	The thread is detached and can't be waited on. More...

constexpr ThreadState	SDL::THREAD_COMPLETE = SDL_THREAD_COMPLETE
	The thread has finished and should be cleaned up with Thread.Wait()

Detailed Description

These are mostly concerned with starting threads, setting their priority, and dealing with their termination.

In addition, there is support for Thread Local Storage (data that is unique to each thread, but accessed from a single key).

On platforms without thread support (such as Emscripten when built without pthreads), these functions still exist, but things like Thread.Thread() will report failure without doing anything.

If you're going to work with threads, you almost certainly need to have a good understanding of [CategoryMutex](CategoryMutex) as well.

Typedef Documentation

◆ ThreadCB

using SDL::ThreadCB = typedef std::function<int()>

Returns: a value that can be reported through Thread.Wait().

Since: This datatype is available since SDL 3.2.0.

◆ ThreadFunction

using SDL::ThreadFunction = typedef SDL_ThreadFunction

Parameters

data	what was passed as `data` to Thread.Thread().

Returns: a value that can be reported through Thread.Wait().

Since: This datatype is available since SDL 3.2.0.

◆ ThreadID

using SDL::ThreadID = typedef SDL_ThreadID

These are different from Thread objects, which are generally what an application will operate on, but having a way to uniquely identify a thread can be useful at times.

Since: This datatype is available since SDL 3.2.0.

See also: Thread.GetID; GetCurrentThreadID

◆ ThreadPriority

using SDL::ThreadPriority = typedef SDL_ThreadPriority

SDL will make system changes as necessary in order to apply the thread priority. Code which attempts to control thread state related to priority should be aware that calling Thread.SetCurrentPriority may alter such state. SDL_HINT_THREAD_PRIORITY_POLICY can be used to control aspects of this behavior.

Since: This enum is available since SDL 3.2.0.

◆ ThreadState

using SDL::ThreadState = typedef SDL_ThreadState

The current state of a thread can be checked by calling Thread.GetState.

Since: This enum is available since SDL 3.2.0.

See also: Thread.GetState

◆ TLSDestructorCallback

using SDL::TLSDestructorCallback = typedef SDL_TLSDestructorCallback

This is called when a thread exits, to allow an app to free any resources.

Parameters

value a pointer previously handed to SetTLS.

Since: This datatype is available since SDL 3.2.0.

See also: SetTLS

◆ TLSID

using SDL::TLSID = typedef AtomicInt

0 is the invalid ID. An app can create these and then set data for these IDs that is unique to each thread.

Since: This datatype is available since SDL 3.2.0.

See also: GetTLS; SetTLS

Function Documentation

◆ CleanupTLS()

void SDL::CleanupTLS ( )

inline

If you are creating your threads outside of SDL and then calling SDL functions, you should call this function before your thread exits, to properly clean up SDL memory.

Thread safety:: It is safe to call this function from any thread.

Since: This function is available since SDL 3.2.0.

◆ CreateThread()

Thread SDL::CreateThread	(	ThreadFunction	fn,
		StringParam	name,
		void *	data
	)

inline

This is a convenience function, equivalent to calling Thread.Thread with the following properties set:

prop::thread.CREATE_ENTRY_FUNCTION_POINTER: fn
prop::thread.CREATE_NAME_STRING: name
prop::thread.CREATE_USERDATA_POINTER: data

Note that this "function" is actually a macro that calls an internal function with two extra parameters not listed here; they are hidden through preprocessor macros and are needed to support various C runtimes at the point of the function call. Language bindings that aren't using the C headers will need to deal with this.

Usually, apps should just call this function the same way on every platform and let the macros hide the details.

Parameters

fn	the ThreadFunction function to call in the new thread.
name	the name of the thread.
data	a pointer that is passed to `fn`.

Returns: an opaque pointer to the new thread object on success.

Exceptions

Error on failure.

Since: This function is available since SDL 3.2.0.

See also: Thread.Thread; Thread.Wait

◆ CreateThreadWithProperties()

Thread SDL::CreateThreadWithProperties ( PropertiesParam props )

inline

These are the supported properties:

prop::thread.CREATE_ENTRY_FUNCTION_POINTER: an ThreadFunction value that will be called at the start of the new thread's life. Required.
prop::thread.CREATE_NAME_STRING: the name of the new thread, which might be available to debuggers. Optional, defaults to nullptr.
prop::thread.CREATE_USERDATA_POINTER: an arbitrary app-defined pointer, which is passed to the entry function on the new thread, as its only parameter. Optional, defaults to nullptr.
prop::thread.CREATE_STACKSIZE_NUMBER: the size, in bytes, of the new thread's stack. Optional, defaults to 0 (system-defined default).

SDL makes an attempt to report prop::thread.CREATE_NAME_STRING to the system, so that debuggers can display it. Not all platforms support this.

Thread naming is a little complicated: Most systems have very small limits for the string length (Haiku has 32 bytes, Linux currently has 16, Visual C++ 6.0 has nine!), and possibly other arbitrary rules. You'll have to see what happens with your system's debugger. The name should be UTF-8 (but using the naming limits of C identifiers is a better bet). There are no requirements for thread naming conventions, so long as the string is null-terminated UTF-8, but these guidelines are helpful in choosing a name:

https://stackoverflow.com/questions/149932/naming-conventions-for-threads

If a system imposes requirements, SDL will try to munge the string for it (truncate, etc), but the original string contents will be available from Thread.GetName().

The size (in bytes) of the new stack can be specified with prop::thread.CREATE_STACKSIZE_NUMBER. Zero means "use the system default" which might be wildly different between platforms. x86 Linux generally defaults to eight megabytes, an embedded device might be a few kilobytes instead. You generally need to specify a stack that is a multiple of the system's page size (in many cases, this is 4 kilobytes, but check your system documentation).

Note that this "function" is actually a macro that calls an internal function with two extra parameters not listed here; they are hidden through preprocessor macros and are needed to support various C runtimes at the point of the function call. Language bindings that aren't using the C headers will need to deal with this.

The actual symbol in SDL is SDL_CreateThreadWithPropertiesRuntime, so there is no symbol clash, but trying to load an SDL shared library and look for "Thread.Thread" will fail.

Usually, apps should just call this function the same way on every platform and let the macros hide the details.

Parameters

props the properties to use.

Returns: an opaque pointer to the new thread object on success.

Exceptions

Error on failure.

Since: This function is available since SDL 3.2.0.

See also: Thread.Thread; Thread.Wait

◆ Detach()

void SDL::Thread::Detach ( )

inline

A thread may be "detached" to signify that it should not remain until another thread has called Thread.Wait() on it. Detaching a thread is useful for long-running threads that nothing needs to synchronize with or further manage. When a detached thread is done, it simply goes away.

There is no way to recover the return code of a detached thread. If you need this, don't detach the thread and instead use Thread.Wait().

Once a thread is detached, you should usually assume the Thread isn't safe to reference again, as it will become invalid immediately upon the detached thread's exit, instead of remaining until someone has called Thread.Wait() to finally clean it up. As such, don't detach the same thread more than once.

If a thread has already exited when passed to Thread.Detach(), it will stop waiting for a call to Thread.Wait() and clean up immediately. It is not safe to detach a thread that might be used with Thread.Wait().

You may not call Thread.Wait() on a thread that has been detached. Use either that function or this one, but not both, or behavior is undefined.

It is safe to pass nullptr to this function; it is a no-op.

          Thread.Thread() call that started this thread.

Since: This function is available since SDL 3.2.0.

See also: Thread.Thread; Thread.Wait

◆ DetachThread()

void SDL::DetachThread ( ThreadRaw thread )

inline

A thread may be "detached" to signify that it should not remain until another thread has called Thread.Wait() on it. Detaching a thread is useful for long-running threads that nothing needs to synchronize with or further manage. When a detached thread is done, it simply goes away.

There is no way to recover the return code of a detached thread. If you need this, don't detach the thread and instead use Thread.Wait().

Once a thread is detached, you should usually assume the Thread isn't safe to reference again, as it will become invalid immediately upon the detached thread's exit, instead of remaining until someone has called Thread.Wait() to finally clean it up. As such, don't detach the same thread more than once.

If a thread has already exited when passed to Thread.Detach(), it will stop waiting for a call to Thread.Wait() and clean up immediately. It is not safe to detach a thread that might be used with Thread.Wait().

You may not call Thread.Wait() on a thread that has been detached. Use either that function or this one, but not both, or behavior is undefined.

It is safe to pass nullptr to this function; it is a no-op.

Parameters

thread the Thread pointer that was returned from the Thread.Thread() call that started this thread.

Since: This function is available since SDL 3.2.0.

See also: Thread.Thread; Thread.Wait

◆ GetCurrentThreadID()

ThreadID SDL::GetCurrentThreadID ( )

inline

This thread identifier is as reported by the underlying operating system. If SDL is running on a platform that does not support threads the return value will always be zero.

This function also returns a valid thread ID when called from the main thread.

Returns: the ID of the current thread.

Since: This function is available since SDL 3.2.0.

See also: Thread.GetID

◆ GetID()

ThreadID SDL::Thread::GetID ( ) const

inline

This thread identifier is as reported by the underlying operating system. If SDL is running on a platform that does not support threads the return value will always be zero.

Returns: the ID of the specified thread, or the ID of the current thread if thread is nullptr.

Since: This function is available since SDL 3.2.0.

See also: GetCurrentThreadID

◆ GetName()

const char * SDL::Thread::GetName ( ) const

inline

Returns: a pointer to a UTF-8 string that names the specified thread, or nullptr if it doesn't have a name.

Since: This function is available since SDL 3.2.0.

◆ GetState()

ThreadState SDL::Thread::GetState ( ) const

inline

Returns: the current state of a thread, or THREAD_UNKNOWN if the thread isn't valid.

Since: This function is available since SDL 3.2.0.

See also: ThreadState

◆ GetThreadID()

ThreadID SDL::GetThreadID ( ThreadParam thread )

inline

This thread identifier is as reported by the underlying operating system. If SDL is running on a platform that does not support threads the return value will always be zero.

Parameters

thread the thread to query.

Returns: the ID of the specified thread, or the ID of the current thread if thread is nullptr.

Since: This function is available since SDL 3.2.0.

See also: GetCurrentThreadID

◆ GetThreadName()

const char * SDL::GetThreadName ( ThreadParam thread )

inline

Parameters

thread the thread to query.

Returns: a pointer to a UTF-8 string that names the specified thread, or nullptr if it doesn't have a name.

Since: This function is available since SDL 3.2.0.

◆ GetThreadState()

ThreadState SDL::GetThreadState ( ThreadParam thread )

inline

Parameters

thread the thread to query.

Returns: the current state of a thread, or THREAD_UNKNOWN if the thread isn't valid.

Since: This function is available since SDL 3.2.0.

See also: ThreadState

◆ GetTLS()

void * SDL::GetTLS ( TLSID * id )

inline

Parameters

id	a pointer to the thread local storage ID, may not be nullptr.

Returns: the value associated with the ID for the current thread or nullptr if no value has been set; call GetError() for more information.

Thread safety:: It is safe to call this function from any thread.

Since: This function is available since SDL 3.2.0.

See also: SetTLS

◆ SetCurrentPriority()

void SDL::Thread::SetCurrentPriority ( ThreadPriority priority )

inlinestatic

Note that some platforms will not let you alter the priority (or at least, promote the thread to a higher priority) at all, and some require you to be an administrator account. Be prepared for this to fail.

Parameters

priority the ThreadPriority to set.

Exceptions

Error on failure.

Since: This function is available since SDL 3.2.0.

◆ SetCurrentThreadPriority()

void SDL::SetCurrentThreadPriority ( ThreadPriority priority )

inline

Note that some platforms will not let you alter the priority (or at least, promote the thread to a higher priority) at all, and some require you to be an administrator account. Be prepared for this to fail.

Parameters

priority the ThreadPriority to set.

Exceptions

Error on failure.

Since: This function is available since SDL 3.2.0.

◆ SetTLS()

void SDL::SetTLS	(	TLSID *	id,
		const void *	value,
		TLSDestructorCallback	destructor
	)

inline

If the thread local storage ID is not initialized (the value is 0), a new ID will be created in a thread-safe way, so all calls using a pointer to the same ID will refer to the same local storage.

Note that replacing a value from a previous call to this function on the same thread does not call the previous value's destructor!

destructor can be nullptr; it is assumed that value does not need to be cleaned up if so.

Parameters

id	a pointer to the thread local storage ID, may not be nullptr.
value	the value to associate with the ID for the current thread.
destructor	a function called when the thread exits, to free the value, may be nullptr.

Exceptions

Error on failure.

Thread safety:: It is safe to call this function from any thread.

Since: This function is available since SDL 3.2.0.

See also: GetTLS

◆ Wait()

void SDL::Thread::Wait ( int * status )

inline

Threads that haven't been detached will remain until this function cleans them up. Not doing so is a resource leak.

Once a thread has been cleaned up through this function, the Thread that references it becomes invalid and should not be referenced again. As such, only one thread may call Thread.Wait() on another.

The return code from the thread function is placed in the area pointed to by status, if status is not nullptr.

You may not wait on a thread that has been used in a call to Thread.Detach(). Use either that function or this one, but not both, or behavior is undefined.

It is safe to pass a nullptr thread to this function; it is a no-op.

Note that the thread pointer is freed by this function and is not valid afterward.

          Thread.Thread() call that started this thread.

Parameters

status a pointer filled in with the value returned from the thread function by its 'return', or -1 if the thread has been detached or isn't valid, may be nullptr.

Since: This function is available since SDL 3.2.0.

See also: Thread.Thread; Thread.Detach

◆ WaitThread()

void SDL::WaitThread	(	ThreadParam	thread,
		int *	status
	)

inline

Threads that haven't been detached will remain until this function cleans them up. Not doing so is a resource leak.

Once a thread has been cleaned up through this function, the Thread that references it becomes invalid and should not be referenced again. As such, only one thread may call Thread.Wait() on another.

The return code from the thread function is placed in the area pointed to by status, if status is not nullptr.

You may not wait on a thread that has been used in a call to Thread.Detach(). Use either that function or this one, but not both, or behavior is undefined.

It is safe to pass a nullptr thread to this function; it is a no-op.

Note that the thread pointer is freed by this function and is not valid afterward.

Parameters

thread	the Thread pointer that was returned from the Thread.Thread() call that started this thread.
status	a pointer filled in with the value returned from the thread function by its 'return', or -1 if the thread has been detached or isn't valid, may be nullptr.

Since: This function is available since SDL 3.2.0.

See also: Thread.Thread; Thread.Detach

SDL_THREAD_UNKNOWN

Classes

Typedefs

Functions

Variables

Detailed Description

Typedef Documentation

◆ ThreadCB

◆ ThreadFunction

◆ ThreadID

◆ ThreadPriority

◆ ThreadState

◆ TLSDestructorCallback

◆ TLSID

Function Documentation

◆ CleanupTLS()

◆ CreateThread()

◆ CreateThreadWithProperties()

◆ Detach()

◆ DetachThread()

◆ GetCurrentThreadID()

◆ GetID()

◆ GetName()

◆ GetState()

◆ GetThreadID()

◆ GetThreadName()

◆ GetThreadState()

◆ GetTLS()

◆ SetCurrentPriority()

◆ SetCurrentThreadPriority()

◆ SetTLS()

◆ Wait()

◆ WaitThread()

Variable Documentation

◆ THREAD_ALIVE

◆ THREAD_DETACHED

◆ THREAD_PRIORITY_HIGH

◆ THREAD_PRIORITY_NORMAL

◆ THREAD_PRIORITY_TIME_CRITICAL

◆ THREAD_UNKNOWN
